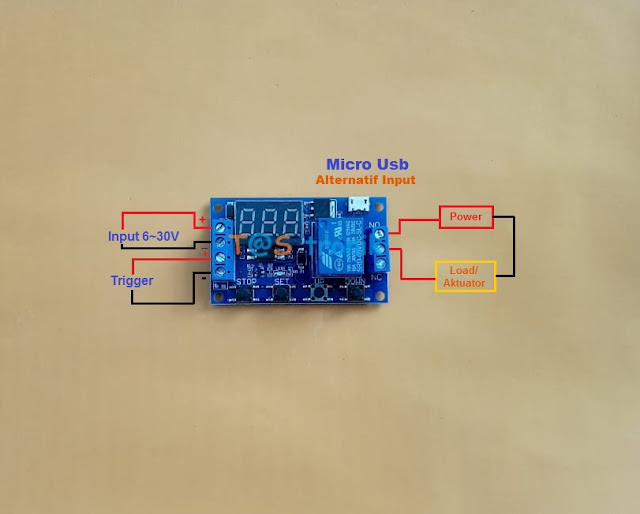

Digital relay timer yang akan dibahas kali ini modulnya seperti gambar di bawah ini ya…(memiliki 4 tombol STOP, SET, UP, DOWN)
Modul Timer ini memiliki 2 alternatif input power supply, yakni Micro Usb dan Terminal blok (pilih salah satu saja saat menggunakannya).
Secara umum, modul timer ini memiliki spesifikasi sebagai berikut
1. Interval waktu : 1-999 detik/menit ( dapat di atur)
2. Tegangan supply : 6-30VDC (support microUSB)
3. Sinyal trigger : 3-24V ( high )
4. Kapasitas Output : 220VAC 5A, 30VDC 5A
5. Terdapat sleep mode (5 menit)
6. Dimensi : 62 x 38 x 17 mm
Bagaimana jeda waktu timernya?
Modul ini dapat diseting jeda waktunya mulai dari 0.1 detik hingga 999 menit (16.5 jam).
Perhatikan tampilan nilai/angka dan titik yang muncul di LED, jika yang muncul adalah
(000) maka artinya range waktunya 1 ~ 999 detik
(00.0) maka artinya range waktunya 0.1 detik ~99.9 detik
(0.0.0) maka artinya range waktunya 1 menit 999 menit
Bagaimana cara mengganti jeda waktu dari detik ke menit / sebaliknya?
tekan tombol STOP hingga muncul titik (hingga titik hilang) saat menyeting parameter jeda waktu
Apakah bisa diseting mati selama beberapa detik, kemudian nyala beberapa menit/jam (beda satuan waktu)?
Bisa. Saat menyeting OP/CL tinggal ganti saja range waktunya menggunakan tombol STOP
Apa itu sinyal trigger?
Sinyal yang digunakan untuk mengaktifkan timer (biasanya menggunakan saklar/tombol sesuai sistem yang diinginkan)
Lalu, apa saja pilihan mode timernya?
Pada modul ini terdapat beberapa pilihan mode timer (menggunakan simbol P1.1 ~ P-4) dengan keterangan sebagai berikut.
- P1.1 : Relay akan aktif menghitung sebesar nilai OP jika triger pin mendapat sinyal
- P1.2 : menghitung ulang sinyal trigger
- P1.3 : Reset sinyal, relay akan off, dan menghentikan clock
(Pada dasarnya mode P1.1 – P1.3 hampir sama) - P -2 : Sinyal trigger, relay akan mati sebesar nilai CL dan akan nyala selama nilai OP
- P3.1 : hampir sama dengan mode P-2 dan dapat berulang sebanyak LOP
- P3.2 : kebalikan dari mode P3.1
- P-4 : sinyal holding
Bagaimana cara mengganti/menyeting mode timer pada modul ini?
- Tentukan mode operasi yang diinginkan (P.1 ~ P-4)
- Sambungkan input (Vcc dan Ground)
- Saat awal, muncul 000 pada display
- Tekan tahan tombol SET (selama 2 detik) maka akan masuk ke mode seting
- Pilih mode operasi (P.1 ~ P-4) dengan menekan tombol UP / DOWN
- Tekan tombol SET dan akan muncul OP di layar
- masukkan lama waktu OP dengan cara menekan UP / DOWN
- Perhatikan titik pada display, jika tidak ada titik yang menyala
(000) maka artinya range waktu OP 1 ~ 999 detik
(00.0) maka artinya range waktu OP 0.1 detik ~99.9 detik
(0.0.0) maka artinya range waktu OP 1 menit 999 menit
Untuk mengganti/mengatur posisi titik tekan tombol STOP - Jika waktu OP sudah diset, tekan tombol SET maka akan masuk ke seting waktu CL (untuk mode P1 hanya perlu seting nilai OP)
- Tekan SET dan atur waktu untuk CL
- Tekan SET dan akan masuk seting LOP (pengaturan perulangan)
- Atur nilai lop nya
- Jika selesai maka tekan tahan tombol SET (2 detik)
- Relay akan kembali ke menu awal (000)
- Seting selesai
Apakah setingan akan hilang jika power/supply dimatikan?
Tidak. mode yang telah diseting tetap akan tersimpan.
